AIRFLOW PALLET INVERTER SR1S

FREEZER SPACER RETRIEVER, PALLET EXCHANGER AND PRODUCT SPLITTER

Similar design to the Pallet Inverter SR1 machine but is able to split your product into 2 or more units. Can be used also to exchange pallets or retrieve freezer spacers.

Constructed from heavy duty steel plate and capable of withstanding the environment of meat processing and freezer operations. The inverters are hydraulically operated and are controlled electrically from a central control box. The inverters can be manufactured in either a painted finish or stainless steel, the sliding table that touches your product can be stainless or paint finish also. The Airflow Pallet Inverters SR1S can be loaded with a palletised load on the inverter base with either a forklift truck or a hand pallet truck.

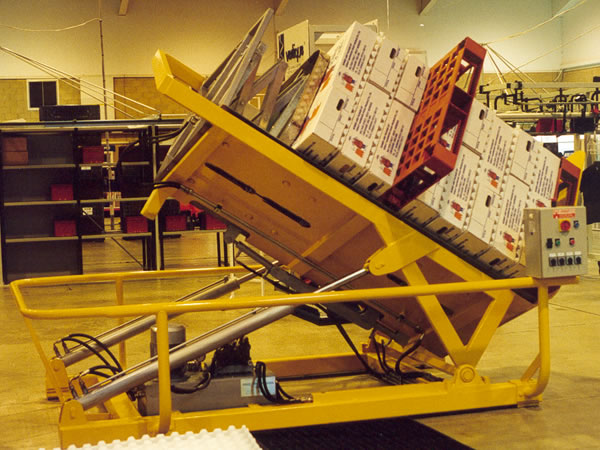

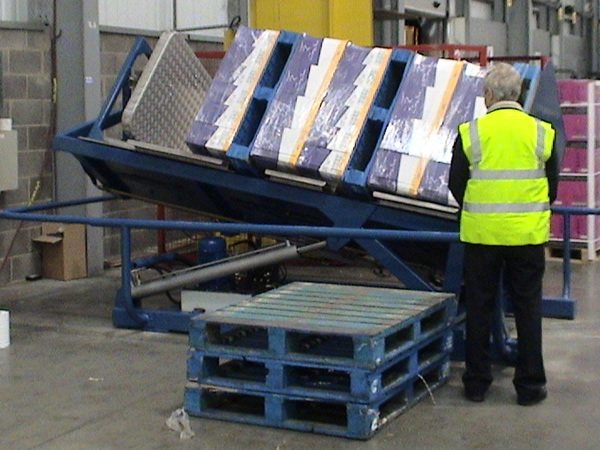

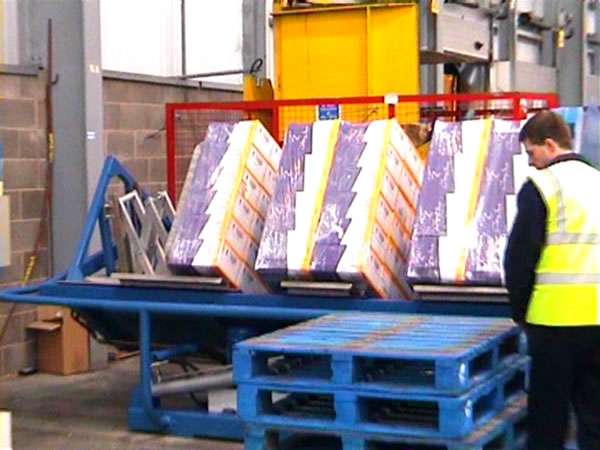

Once activated the machine rotates the pallet on to one corner of the V shaped table and holds the pallet within the V, therefore ensuring that all boxes are always at a 45 degree angle facing away from the operator. This prevents boxes being pulled onto the operator when removing spacers. When the pallet is horizontal the hydraulic sliding table is operated, this provides a gap in order to change the pallet or retrieve the spacers. The Pallet Inverter SR1S includes the additional top scissors which prevent collapse of small or unstable cartons. The operation of the splitting sliding table enables the product to be split at a predefined location.

• Retrieve spacers / remove or change pallets
• Split your product 2 or 3 times
• Cycle time in less than 60 seconds
• One person operation, save 95% on labour costs
• No backache! No lifting of product!
• Reduce absenteeism
• Lifts up to two tons
• Ideal for use in the, fruit, cold storage, meat industries
