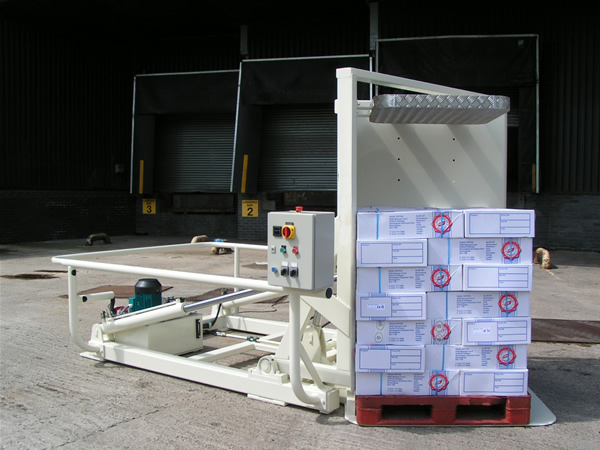

AIRFLOW PALLET EXCHANGER

LOW COST PALLET EXCHANGER FOR BOXED GOODS

The latest design which enables the pallet to be exchanged at floor level with a pallet truck. A very capable machine and due to the clever design remains very affordable and very accessible. You can gain access to your product at all times and so the machine can still be used to retrieve freezer spacers or attend to a damaged layer of product. Based on the Pallet Inverter SR1P machine but designed to be even more affordable. Put simply a multi function low cost solution to your pallet handling requirements.

Constructed from heavy duty steel plate and capable of withstanding the warehousing environment. The inverters are hydraulically operated and are controlled electrically from a central control box. The Pallet Exchanger can be manufactured in either a painted finish or stainless steel. Load with a palletised load on the inverter base with either a forklift truck or a hand pallet truck.

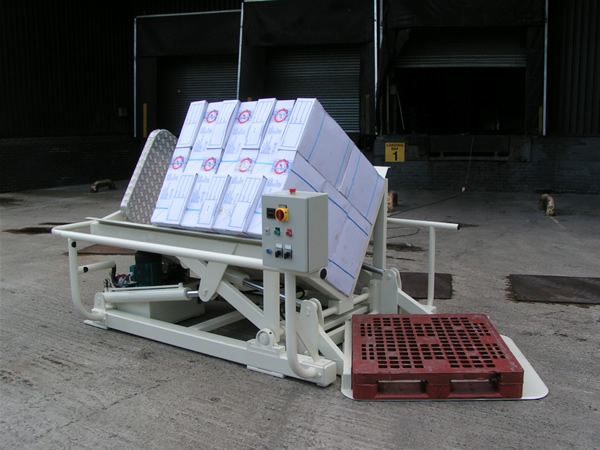

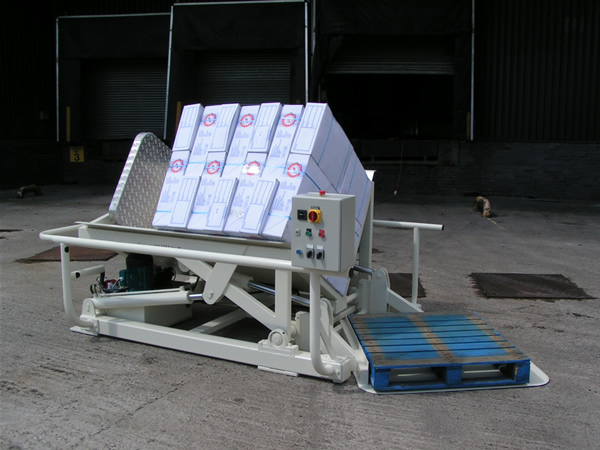

Once activated the machine rotates the pallet on to one corner of the V shaped table and holds the pallet within the V, therefore ensuring that all boxes are always at a 45 degree angle facing away from the operator. This prevents boxes falling onto the operator. When the product is horizontal the pallet is hydraulically moved to floor level in order for a pallet truck to remove it and replace it with the exchange pallet. This feature means no one has to lift the pallet. The Pallet Exchanger is supplied as standard with a manually movable top plate but can be ordered with a hydraulic version, which prevents collapse of small or unstable cartons.

• Exchange pallets
• Cycle time in less than 60 seconds
• One person operation, save 95% on labour costs
• No backache! No lifting of product!
• Reduce absenteeism
• Lifts up to two tons
• Ideal for use in many industries
• Solves manual handling / health and safety issues
