AIRFLOW PALLET INVERTER SR1PD

AUTOMATIC DEPALLETISING MACHINE

With the introduction of the Airflow automatic depalletising system, it is now possible to reduce high pallets of unevenly layered delicate product down to a single box automatically. The system allows different types and sizes of cartons taller than 150mm high to be handled automatically. The pallet of product will be de-layered onto a conveyor ready for production or inspection. The whole process eliminates the need for manual handling. Virtually any configuration of equipment is possible in order to meet your exact requirements.

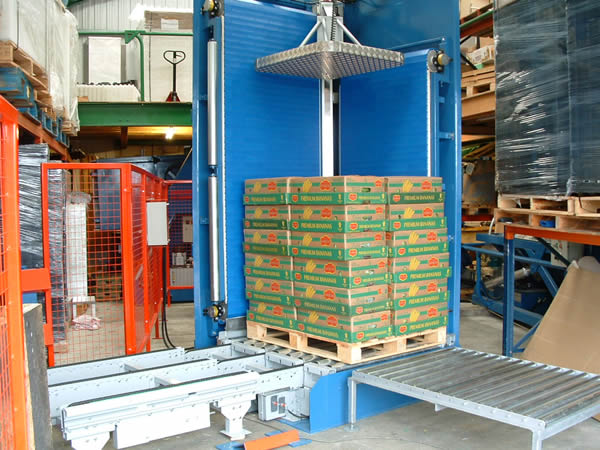

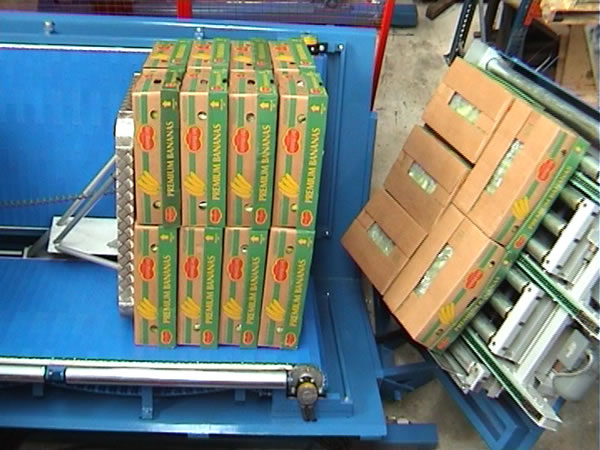

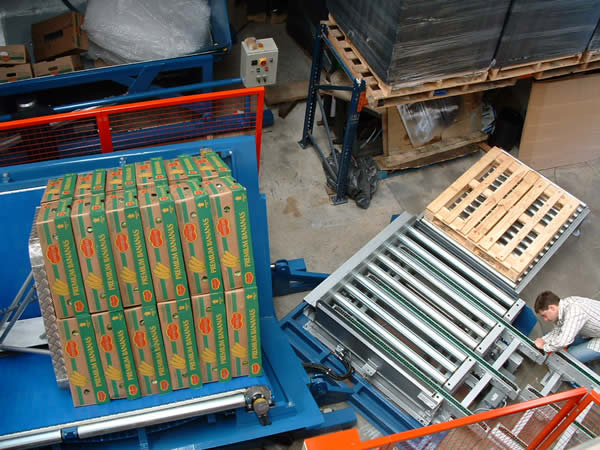

Once activated the machine rotates the pallet on to one corner of the V shaped table and holds the pallet within the V. The base of the machine transfers first the pallet and then the individual layers of cartons to the conveyor system. The cartons can then be distributed any where within the plant system. The full pallets are fed automatically into the machine and the number of preloaded pallets can be determined at the design stage.

Delayers pallets totally automatic without lifting a box
Ideal for use in the warehousing / fruit industries
Bespoke machines a speciality
Modular epoxy coated guarding and photo cell protection
Turn key package
Fast cycle time
No backache! No lifting of product! No lifting of pallets!
Solves manual handling / health and safety issues
One person operation save 95% on labour costs

Pallet Changer

Need to change pallets under many load types? Use the Airflow Pallet changer. Handles bags, boxes, drums, glass, etc. Also many pallet types and depths.

Pallet Changer SS

Need to change pallets under many load types? Available in stainless steel for washdown environments.

Pallet Inverter TC

Need to invert your product 180 degrees and/or change the pallet? Use the Airflow Pallet Inverter TC. Handles bags, boxes, drums, glass, etc. Also many pallet types and depths.
